MediPines AGM100 Overview

Non-Invasive Pulmonary Diagnostic Information

Rapidly identify the source of hypoxemia and the severity of gas exchange impairment

Fast, non-invasive results at the point of care

The AGM100 narrows differential diagnosis by identifying the source of hypoxemia and indicating the severity of gas exchange impairment.

In 2 minutes, you will know if oxygenation and ventilation are adequate, and if gas exchange is impaired.

  • V/Q Mismatch
  • Hypoventilation
  • Right-to-left shunt.
  • Thickened Alveolar-Capillary Membrane
  • Low inspired oxygen pressure.

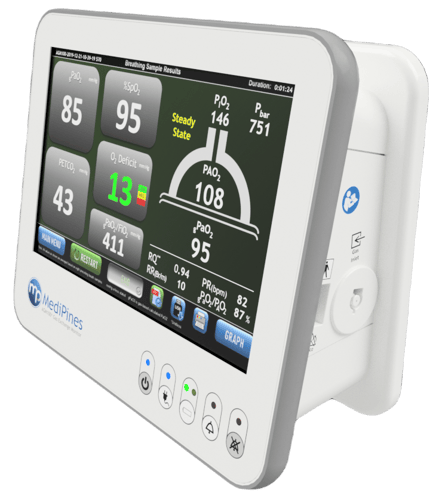

agm100-angle2

Comprehensive Respiratory Parameters

gPaO₂™

Calculated Arterial Partial Pressure of Oxygen, mmHg

PAO₂

End Tidal Partial Pressure of Oxygen, mmHg

O₂ Deficit

Alveolar and Arterial Oxygen Difference (PAO₂-PaO₂), mmHg

PETCO₂

End Tidal Partial Pressure of Carbon Dioxide, mmHg

gPaO₂™ / PAO₂

Ratio of Arterial to Alveolar Oxygen Partial Pressure, %

gPaO₂™ / FiO₂

Ratio of Arterial to Fraction of Inspired Oxygen, mmHg

Pleth

Plethsymograph

RQ

Respiratory Quotient

SpO₂

Oxygen Saturation, %

PIO₂

Partial Pressure of Inspired Oxygen, mmHg

Pulse Rate

Pulse Rate, BPM

RR

Respiratory Rate, Br/m

AGM 100 Summary

Patient Breathing Circuit

breathing circuitThe MediPines Single Patient Use Breathing Circuit is designed to work with AGM100®.

The monitor end of the breathing circuit sample line contains a PTFE membrane filter to protect the monitor from pathogen-containing droplets from patient breath samples. This prevents the re-circulation of pathogens into room air via the monitor’s exhaust system.

Patient-Centric​ Design

Ergonomic design of the patient-side opening reduces leakages of exhaled breathing gases and supports patient comfort and high compliance.​



Built-In Hydrophobic Membranes

The breathing circuit incorporates an enclosed monitor-side filtration system that blocks particulates at a micron level from entering and contaminating the unit.​



Medical Grade Materials

The sampling line material prevents gas absorption from the gases as they travel from the patient to the MediPines Gas Exchange Monitor to allow for precise and accurate measurements.
